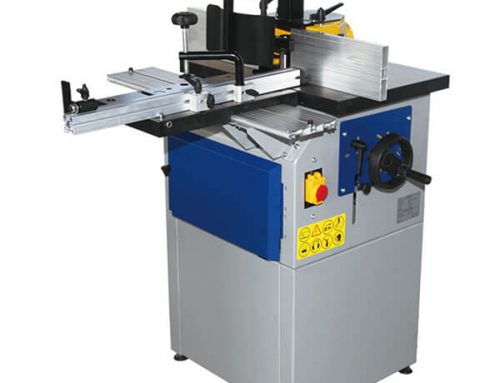

Project Description
Spindle moulder with sliding table;
Main spindle 30 mm diameter;
4 spindle speeds 1400-9000rpm
- Spindle moulder wth Sliding table

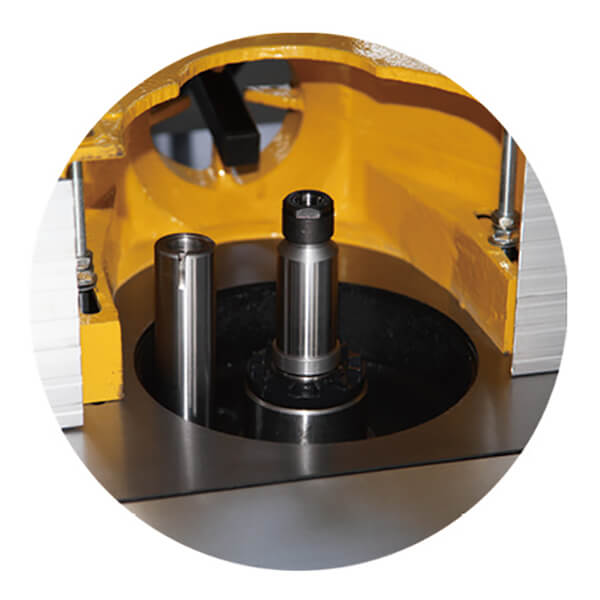

- Standard interchangable spindle accepts cutterblock and router bits;
- Standard router collets
- Quiet Induction Motor with thermal overload protection to prevent overheating
- Cast Iron Precision Ground Table
- Max tooling diameter 163mm;
- Optional sanding drum kit
- Standard 100mm Dust Extraction Outlet and dust hoses
- Optional Wheel Kit
| Model | W3-SH2 |
| Motor | 1500w |
| Spindle Speed | 4 speeds 1400/4000/6000/9000rpm |
| Spindle Diameter | 30mm |
| Spindle Travel | 110mm |
| Table Height | 870mm |
| Table Size | 600×400mm |
| Sliding Table Size | 400×250mm |
| Max.Tooling Dia: | 163mm |
| Dust Extraction Outlet Diam: | 100mm |
| Overall WxDxH | 83×107×128cm |
| GW/NW: | 118/100kg |
| Packing Size | 74×63×53+50×44×12+49×21×24cm |
| Qty/20′: | 96pcs |
