Most powerful planer in our range
with planing width 410mm
- Solid cabinet base unit ensures high stability

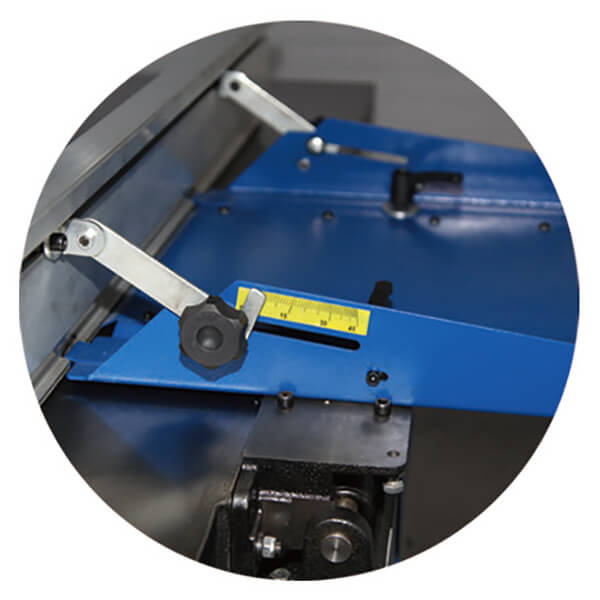

- Adjustable aluminium fence,3-knife cutterblock

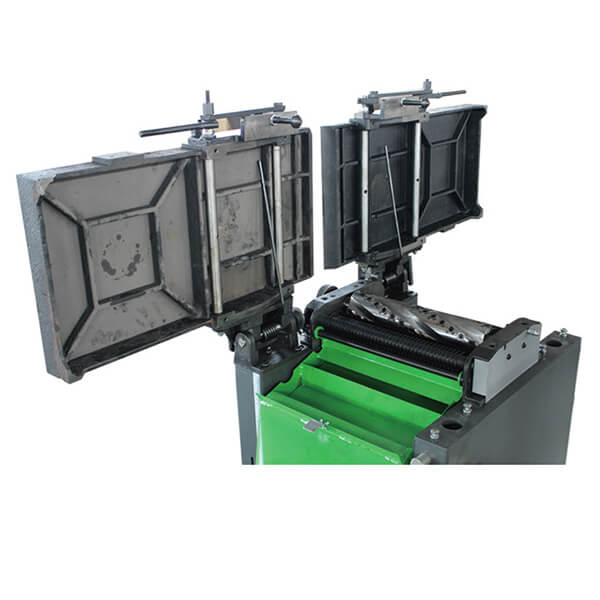

- Collateral pivoting grey cast iron tables enables comfortable thicknessing

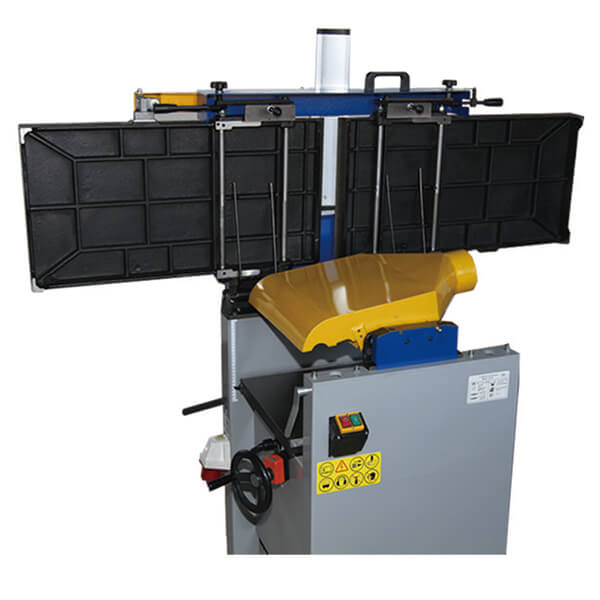

- Simply flips from planer position to thicknesser position
- Dust collector plug allows a dust and chip-free workig environment
- For planing,the in feed mechanism can be switched off
- Standard position counter for thicknesser table
- Optional Taiwan-made spiral cutter block for quieter and more smooth cutting
- Optional cast iron hand wheel
| Model | W2-PT16 |
| Power | 4000W,3phase |
| Planing Width | 410mm |
| Max.Planing Depth | 3mm |
| Thicknessing width | 408mm |
| Max thicknessing depth | 4.5mm |
| Max thicknessing height | 225mm |
| Feed Speed | 7m/min |
| Cutter Block Diam | 70mm 3knives |
| Cutter block speed | 5500rpm |
| Planer Table Length | 1660mm |
| Thicknesser Table Length | 600mm |
| Fence Tilt | 45°-90° |
| GW/NW | 260/300kg |
| Packing Size | 167×69×98mm |
| Qty/20′ | 20pcs |
