Project Description



Powerful planer for cost-conscious DIY enthusiast

ASK FOR PRICE
  • Solid cabinet base unit ensures high stability

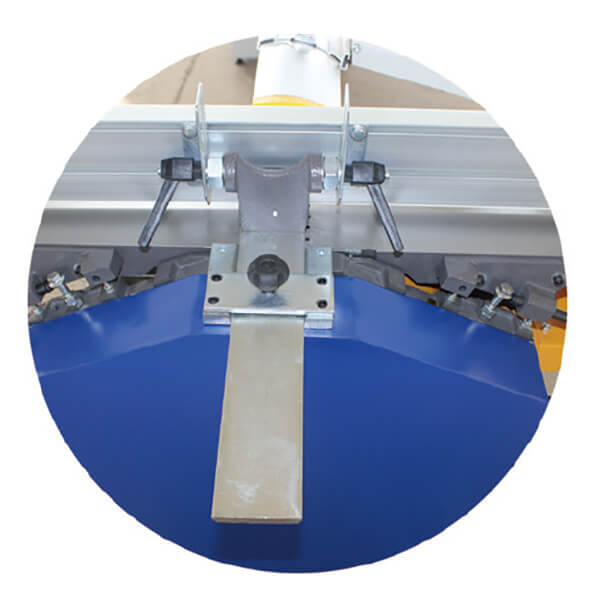

  • Adjustable aluminium fence,3-knife cutterblock

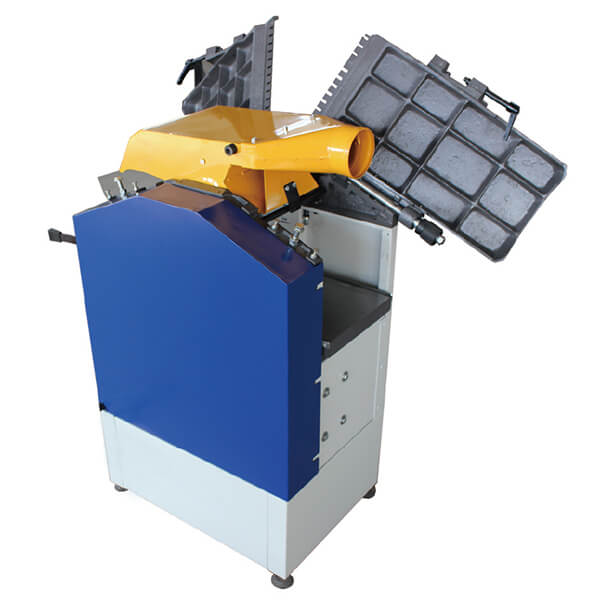

  • Collateral pivoting grey cast iron tables enables comfortable thicknessing

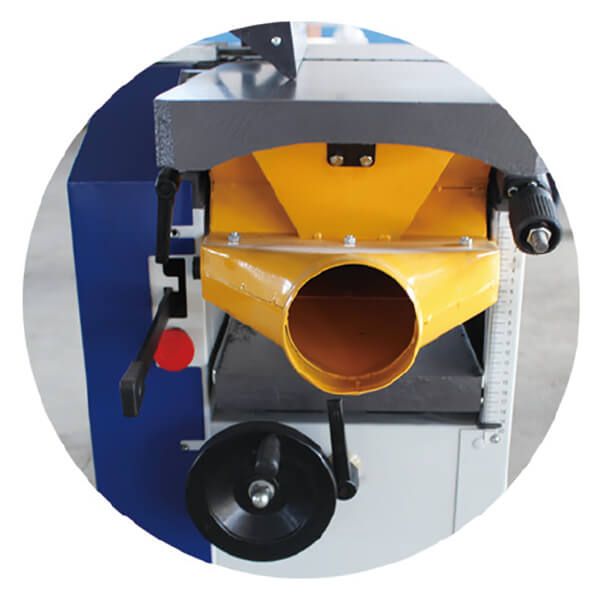

  • Dust collector plug allows a dust and chip-free workig environment
  • For planing,the in feed mechanism can be switched off
  • Optional Taiwan-made spiral cutter block for quieter and more smooth cutting
Model W2-PT10
Power 1500W
Planing Width 250mm
Max.Planing Depth 5mm
Thicknessing  width 248mm
Max thicknessing depth 2.5mm
Max thicknessing height 180mm
Feed Speed 8m/min
Cutter Block Diam 75mm 3knives
Cutter block speed 4000rpm
Planer Table Length 1110mm
Thicknesser Table Length 600mm
Fence Tilt 45°-90°
GW/NW 178/148kg
Packing Size 113×50×74cm
Qty/20′ 66pcs
