Panel saw with 48″ sliding beam;
Ideal machine for panels up to 1250mm width
- Panel saw wth 48″ Sliding beam
- Based on our well selling 10″ table saw W1-TS10
- Quiet Induction Motor with thermal overload protection to prevent overheating
- Cast Iron Precision Ground Table

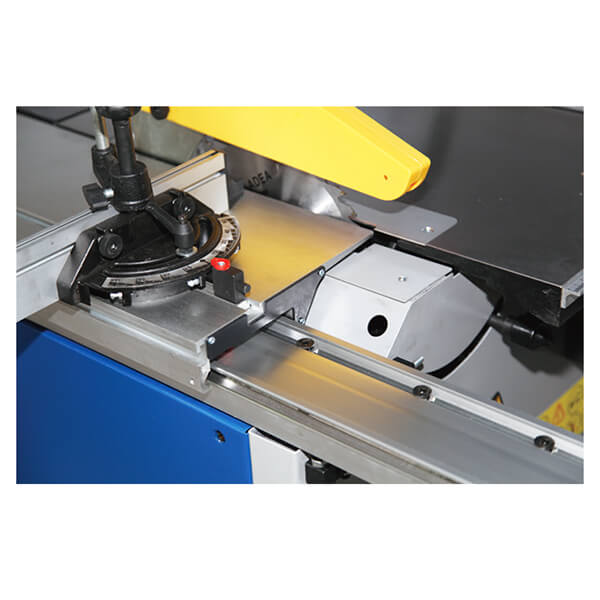

- 4′ travel sliding beam with 1250mm length of cutting
- ldeal for handling large panels up to 8’×4′ sheet
- The beam can be locked in position when using the ripfence
- Strong telescopic arm to take the weight of larger panels
- Standard 100mm Dust Extraction Outlet and dust hoses
- Optional Wheel Kit
| Model | W1-PS10 |
| Blade Dia | 250×30mm |
| Power | 1500w |
| Blade Speed | 4000rpm |
| Max.Cutting Height | 80mm/90°-54mm/45° |
| Dust Chute | 100mm |
| Main Table Size | 650×350mm |
| Extension Table | 650×270+350×350mm |
| Sliding Carriage | 1300×238mm |
| Sliding Table Travel | 1250mm |
| Overall size | 129×100×100cm |
| GW/NW | 166/142kg |
| Packing size | 70×70×93cm+140×27×17cm |
| Qty/20’/40′ | 48/102pcs |
